120 Port Fiber Optic Patch Panel 2U Multimode OM4 MTP-LC

120 Port Fiber Optic Patch Panel 2U Multimode OM4 MTP-LC

Product Inquiry
Part #: EPM4-LDJVZL-2AT Category: .

Description

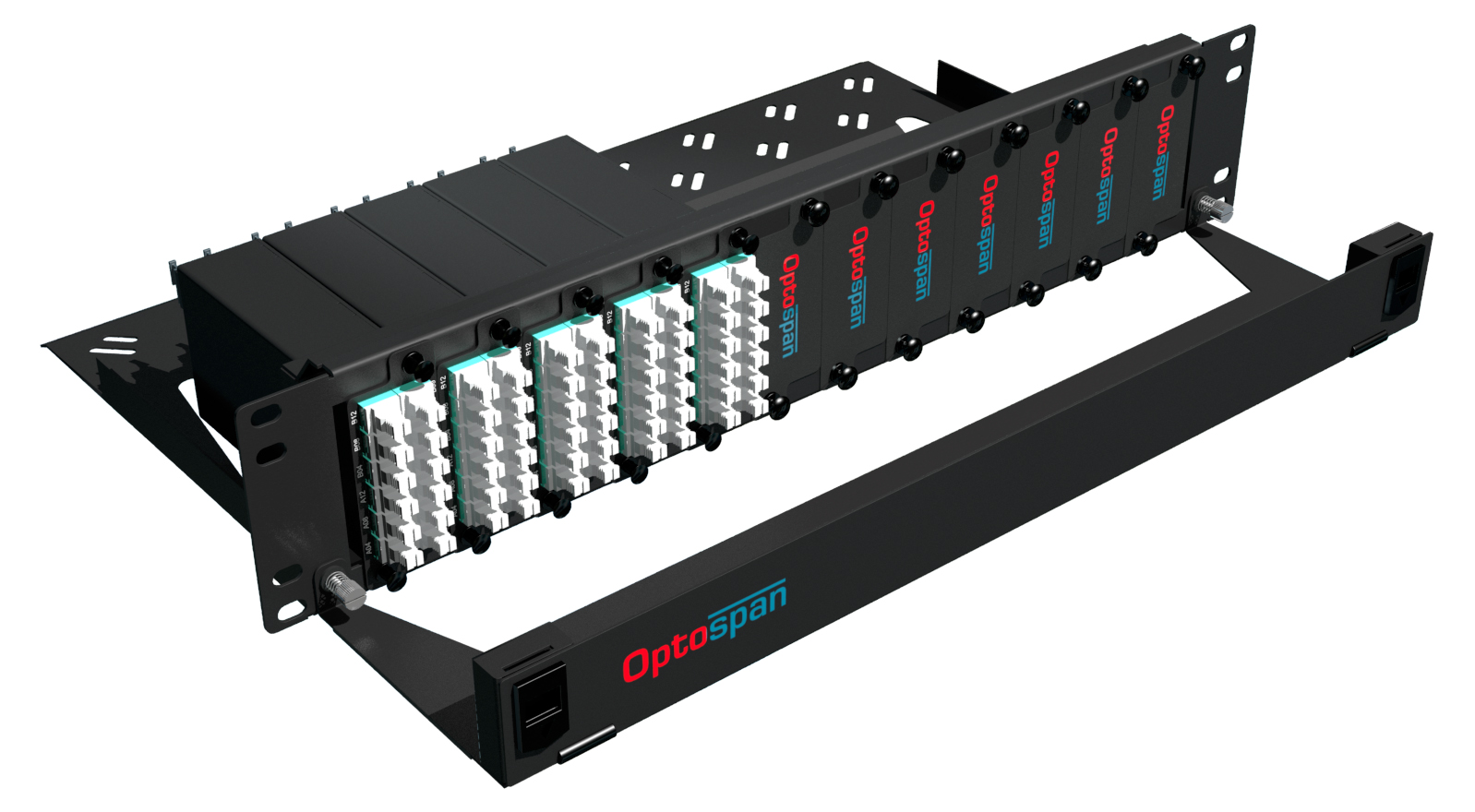

OptoSpan fully loaded 2U Fiber Optic Patch Panel. This shallow depth (7″) compact fiber optic patch panel is loaded with Qty. 5 24 fiber LC-MTP Elite Multimode (OM4) Low Loss MTP Cassettes with a total of 120 LC (60 Duplex LC) fiber ports in front and 10 Loss Optimized MTP Elite (12 Fiber Connector) Male/Pinned rear ports. Factory configured for Polarity Method A and designed for implementations in 10G/100G networks, this fiber optic patch panel is designed for Data Centers, Telecommunication and Enterprise network environment. Maximum expandable to 288 LC fiber adapter ports.

Click Here for additional information on OptoSpan Ultra Elite Series Patch Panels.

Key Features:

  • 120 LC Fiber Ports (Expandable to 288 LC Fiber Ports in 2 RU)
  • 10 MTP Elite (12 Fiber) Connectors in Rear for Core Connection
  • Available with 12 Fiber MTP (10/40G) OR 24 Fiber MTP (100G) Connectors
  • Super Compact Design with Panel depth of less than 7″
  • Premium Front & Rear Wire Management Trays Included

Additional information

series

Matrix Ultra Elite

height

2U

adapter-type

LC (Fr)-MTP Elite Pinned (Re)

mode-media

OM4

fiber-count

120 Fiber
