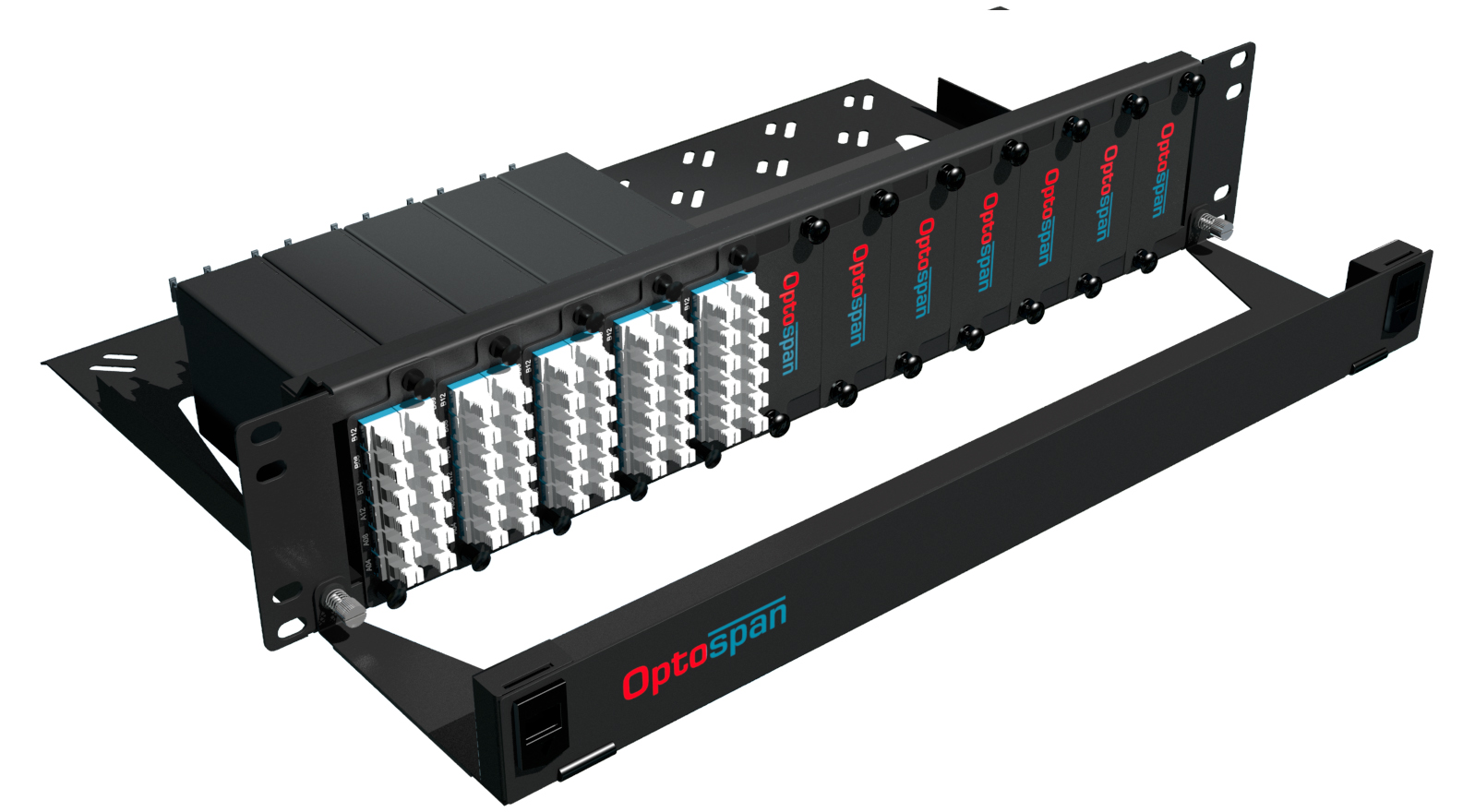

120 Port 2U Fiber Optic Patch Panel Single mode MTP-LC

120 Port 2U Fiber Optic Patch Panel Single mode MTP-LC

Product Inquiry
Part #: EPM9-LDJVZL-2AT Category: .


OptoSpan fully loaded 2U Fiber Optic Patch Panel. This shallow depth (7″) compact fiber optic patch panel is loaded with Qty. 5 24 fiber LC-MTP Elite Single-mode Low Loss MTP Cassettes with a total of 120 LC (60 Duplex LC) fiber ports in front and 10 Loss Optimized MTP Elite (12 Fiber Connector) Male/Pinned rear ports. Factory configured for Polarity Method A and designed for implementations in 10G/100G networks, this fiber optic patch panel is designed for Data Centers, Telecommunication and Enterprise network environment. Maximum expandable to 288 LC fiber adapter ports.

Click Here for additional information on OptoSpan Ultra Elite Series Patch Panels.

Key Features:

  • 120 LC Fiber Ports (Expandable to 288 LC Fiber Ports in 2 RU)
  • 10 MTP Elite (12 Fiber) Connectors in Rear for Core Connection
  • Available with 12 Fiber MTP (10/40G) OR 24 Fiber MTP (100G) Connectors
  • Super Compact Design with Panel depth of less than 7″
  • Premium Front & Rear Wire Management Trays Included

Additional information


Matrix Ultra Elite




LC (Fr)-MTP Elite Pinned (Re)




120 Fiber
