2U LGX Fiber Patch Panel 144 Port LC-MTP Single mode

2U LGX Fiber Patch Panel 144 Port LC-MTP Single mode

Product Inquiry
Part #: HPQ9-LDCVZZ-2AF Category: .

Description

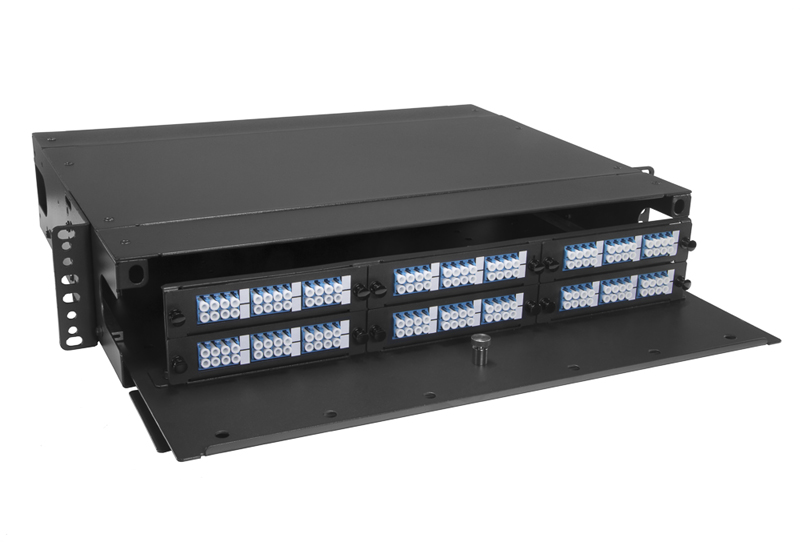

OptoSpan fully loaded LGX 2U Fiber Patch Panel. This 16 Gauge Steel (Black) fiber patch panel is loaded with Qty. 6 24 fiber Single-mode LGX fiber cassettes with a total of 144 LC (72 Duplex LC) fiber ports in front and 12 MTP Elite (12 Fiber Connector) Male/Pinned rear ports. Factory configured for Polarity Method A and designed for implementations in 10G/100G networks, this fiber patch panel is designed for low insertion loss of .15dB. Maximum expandable to 144 LC fiber ports.

Click Here for additional information on OptoSpan High Density Series Patch Panels.

Key Features:

  • 144 LC Ports in 2U
  • 12 MTP Elite (12 Fiber) Connectors in Rear for Core Connection
  • Available with up to 288 LC Fiber Ports in 4U
  • Splicing Kit Available (Optional)
  • LC Pigtails, splice trays and Splice Sleeves Available

Additional information

series

Matrix High Density

height

2U

adapter-type

LC (Fr)-MTP Elite Pinned (Re)

mode-media

OS2

fiber-count

144 Fiber

family

Fiber Distribution
