8-144 Fiber MTP Elite® Fiber Cables

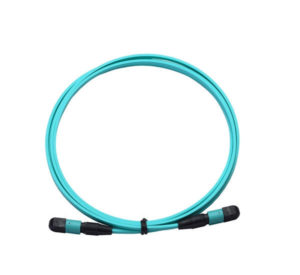

8-144 Fiber MTP Elite®

When installing multi-fiber cable assemblies, the most common method up until recently had been the MPO or Multi-fiber Push-On connector. In order to further improve the performance of complex fiber cable assemblies, OptoSpan has chosen to incorporate the MTP Elite® connector designed by U.S. Conec. The newer connector features many new mechanical redesigns and strict manufacturing tolerances, allowing the connector to deliver high quality signal throughout the network.

OptoSpan’s 12 and 24 fiber MTP Elite cables feature a new and exclusive FiberShield design, comprising a stronger 4.5mm cable structure with an additional layer of Kevlar and 3x the protective jacket.  This makes FiberShield cables 5x stronger than ordinary 3.0 mm MTP Elite cables.

Each of the MTP Elite® fiber cables utilize each of the following mechanical improvements: a floating ferrule in order to maintain a secure connection, rounded metal pins to prevent damage to mating adapters, internal recessed metal pin clamp to prevent pin breakage, and an oval shaped internal spring to avoid fiber damage. In addition to these design improvements, the MTP Elite® connector maintains strict manufacturing tolerances to guarantee high performance and remains completely compatible with any MPO fiber cable or device on the market.

Each and every networking environment requires its own unique solution. OptoSpan allows for any of the listed MTP Elite® fiber cable assemblies to be altered as per customer specifications, such alterations may include but are not limited to polarity, key orientations, or length of fiber assembly.

Specifications:

MTP Cables with FiberShield

All of the MTP Elite® fiber cable assemblies distributed by OptoSpan have been built with genuine components sourced directly from U.S. Conec. While other competitors have chosen to unethically utilize only the MTP Elite® housing, omitting the most crucial component the floating ferrule which is responsible for maintaining a secure connection between devices. OptoSpan has committed to using only authentic and complete components in every fiber cable assembly offered.

Availability of each standard OptoSpan MTP Elite® fiber cable assembly is conveniently listed below. Please contact our support team in order to create specialized cable assemblies in order to suit your unique networking requirements.  Other OptoSpan MTP Elite Fiber Cables include MTP Elite to LC/SC Breakout Cables, Plenum MTP Elite Fiber Cables, and Plenum MTP Elite to LC/SC Breakout Cables.

Click Here for additional information on OptoSpan MTP Elite Cables.

For all other OptoSpan Fiber Optic Cables, please see Fiber Patch Cables, Armored Fiber Optic Cables, MTP Cables, MPO Cables, Specialty Fiber Optic Cables, Breakout Fiber Optic Cables, Bend Insensitive Fiber Cables, and Bulk/Bare Fiber Spools.

Configurations:

  • Internal Fiber Count: 8 to 144 fiber strands per cable assembly
  • Internal Fiber Configurations: 12×1, 12×2, 12×4, 12×6, 12×8, 12×12, 24×1, 24×2, 24×3, 24×4, 24×6
  • Connectors: MTP® Elite by U.S. Conec
  • Cable Assembly Lengths: 1 to 150 meter
  • Ferrule Polish: UPC (Standard) or APC (Angled)
  • Modes: OS2, OM3, OM4
  • Insulation: Riser, Plenum

OptoSpan Advantage:

  • Authentic MTP Elite® connector directly from U.S. Conec
  • Complete MTP Elite® connector assembly, including floating ferrule
  • Terminated and tested in a ISO 14000 (Class 7) quality controlled clean room
  • Each cable assembly comes with its own serial number, diagram, and certified test report
  • Complimentary design and configuration assistance provided by experts to assure precise polarity & termination
  • Five different types of jackets – Standard, Plenum, Bend Insensitive, SteelPatch Armored, and SteelFlex Armored
8-144 Fiber OM4 50/125 Multimode MTP® Fiber Optic Cable

8-144 Fiber OM4 50/125 Multimode MTP Elite® Fiber Cable

Multimode OM4 fiber MTP Elite® fiber cables featuring 50/125 micron fiber core/cladding diameter are available with 8-144 fiber strands in up to 150 meters.  These Riser (OFNR) insulated MTP Elite® to MTP Elite® fiber cables are optimized for 40G fiber networks.  OM4 fiber is fully backward-compatible with existing OM3 systems, but provides added benefits over OM3 fiber.  See OM4 fiber key advantages.

8-144 Fiber OM4 50/125 Multimode MTP® Fiber Optic Cable

8-144 Fiber OM3 50/125 Multimode MTP Elite® Trunk Cable

OptoSpan OM3 multimode MTP Elite® trunk cables provide an upgrade to higher speed networks with up to 144 fiber strands.  These Riser (OFNR) rated MTP Elite® to MTP Elite® trunk cables contain a 50/125 micron core for 10G/40G optical network links.  OM3 fiber MTP Elite® trunk cables provide a value based solution for innovative network improvements.

8-144 Fiber OS2 9/125 Single-Mode MTP® Fiber Optic Cable

8-144 Fiber OS2 9/125 Single-Mode MTP Elite® Trunk Cable

OptoSpan 8-144 fiber Single-Mode OS2 MTP Elite® trunk cables featuring 9/125 micron fiber core/cladding diameter are designed to carry higher bandwidth as compared to multimode fibers. These Riser (PVC) insulated fiber cables are equipped with genuine US Conec MTP Elite® connectors for extreme low-loss cabling.
