Description

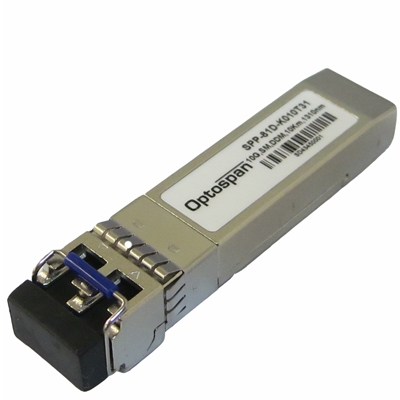

OptoSpan 80 km SFP+ SONET/SDH transceiver for 10G ZR SONET OC-192 / STM-64 w/ CDR. Cisco Compatible SFP+ SONET/SDH transceiver. Details: This advanced 22dB transceiver is designed for highly reliable fiber optic network links up to 80 km. Using EML+APD technology, it operates at a nominal wavelength of 1550nm coupled to an LC optical connector. It is a cost effective transceiver designed to enable 10Gb for data center and core network applications. The PSPS-81DT55K080 offers enhanced digital diagnostics for real-time monitoring of transceiver performance. The module is designed to strictly comply with well known SFP+ specifications developed by the SFF committee. This module is RoHS compliant and lead-free. OptoSpan 10Gb Standard series transceivers have undergone rigorous qualification and certification testing to provide End-to-End Compatibility using switching equipment from CISCO, BROCADE, JUNIPER, ALCATEL, HP (select models), NORTEL, EMC, QLOGIC and other OEMs.
Click Here for additional information on OptoSpan 10G SFP+ Transceivers.
Key Features:
- Exclusive Japanese OSAs for Ultimate Reliability
- SONET OC-192 / STM-64 w/ CDR 22dB SONET/SDH SFP+ Transceiver
- 80 km ZR SONET/SDH SFP+ for SMF @ 10Gbps
- 1550nm EML+APD Laser 80 km SONET/SDH SFP+
- -0°C – 70°C Temperature – Extended/Industrial Available
- 2-Wire Interface Digital Diagnostic Monitoring (SFF-8724)
- Extended 2 Years Warranty
- Tested and Certified in Brand Specific Networks and Target Applications
- Assembled Using Highest Quality Raw Components
- Compliant with SFF-8431, SFF-8432 & ROHS
Applications:
- SONET OC-192 / SDH STM-64
- OTN ITU-T G.709
- 10GBASE-ZR @ 10.31Gbps
- 10GbE & 10Gb/s FC w/FEC
OptoSpan 80 km SFP+ SONET/SDH transceiver for 10G ZR SONET OC-192 / STM-64 w/ CDR. Cisco Compatible SFP+ SONET/SDH transceiver.
PSPS-81DT55K080 Datasheet
