Description

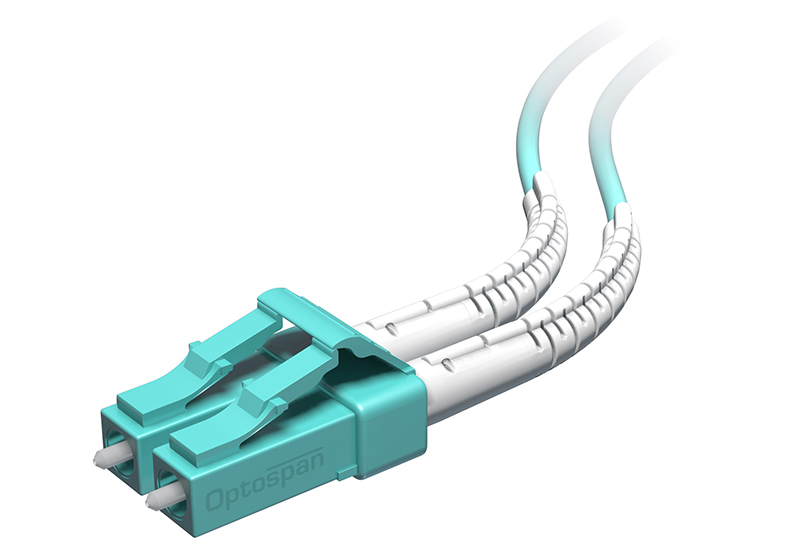

Multimode (OM4) LC-LC Duplex LCElite Low-Loss Cable. Use this 50/125 OM4 (Aqua) LCElite Low-Loss Cable for 40G/100G fiber networks.
The highest performance and versatile LC Fiber Optic Cable in the industry!
Seamlessly combining four of the top performing optical features in one specialty cable, OptoSpan introduces LCElite fiber optic cable with super low loss that delivers exceptional network performance.
Optimized with a high performance proprietary LC ferrule which reduces connector insertion loss (IL) to less than .09dB (ordinary LC IL is .30dB), the LCElite cable is housed in a ruggedized one piece solid body LC connector, that is connected to Corning OM4 bend insensitive fiber with unique 360 degree flex angle boots that can flex in any direction at any angle. The result is the industrys highest performing and rugged fiber patch cable ideal for todays high speed data transmissions.
The LCElite cables deliver superior flexibility and resilience by allowing free movement of boots in any direction. This unique fiber patch cable allows stress-free maneuvering in loaded fiber patch panels where technicians access is often limited by rigid boots.
LCElite Exclusive Features:

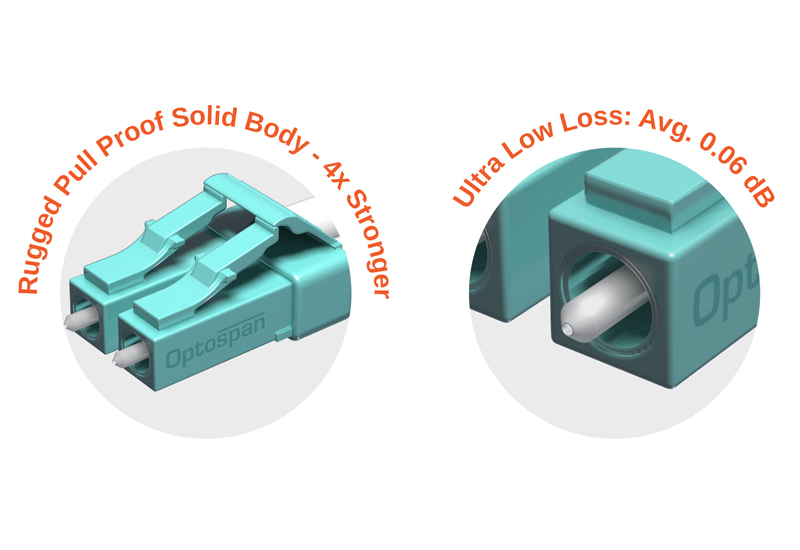

- Ultra Low Loss for superior network performance
- Rugged Solid Body LC Connector

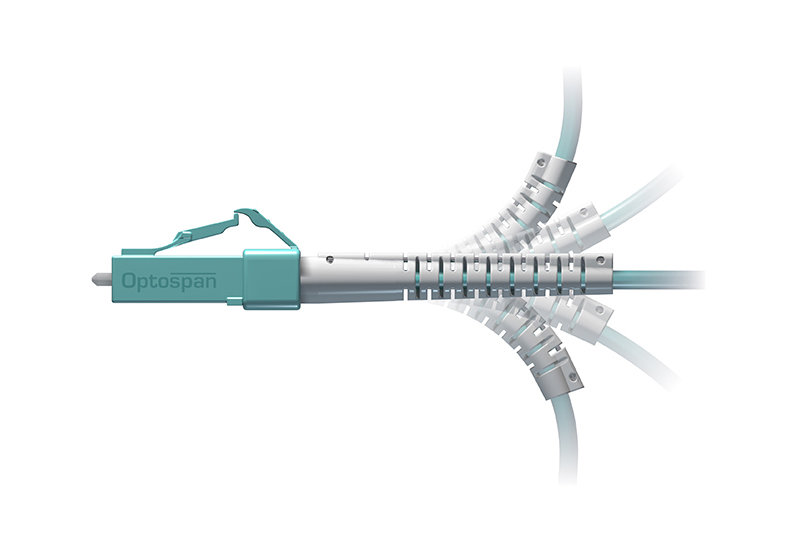

- 360 Flex Angle boots to relieve fiber congestion

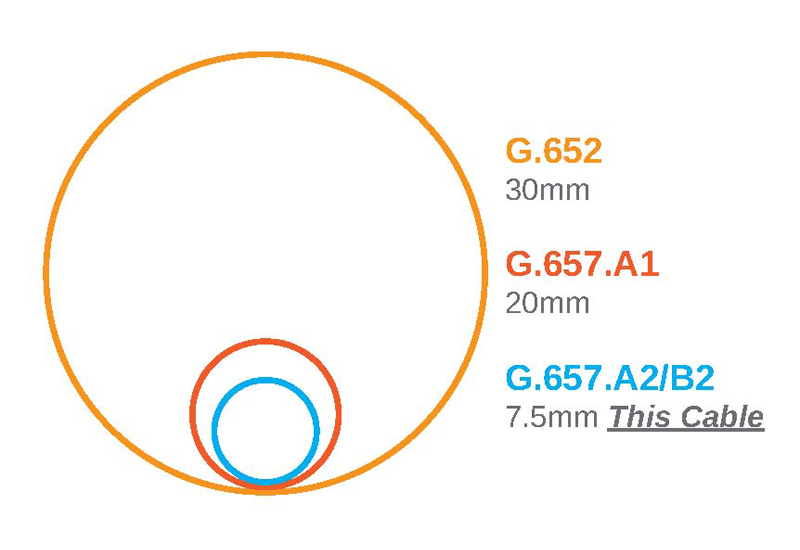

- OM4 50/125 micron Bend Insensitive Fiber
Use this LCElite fiber cable for your 10G, 40G and 100G high-speed fiber optic communications for data center and telecom applications. This high performance LCElite fiber cable is exclusively available from OptoSpan.
Note: Exceeds Verizon FOC TPR 9409 and IEC61300-3-34 Grade A random mating requirements.
Custom configurations available.
Click Here for additional information on OptoSpan OM4 Bend Insensitive Fiber Optic Cables.
Key Features:
- LCElite Low-Loss Cable
- LC-LC Connectors
- Duplex
- Multimode Communication
- Color – Aqua
- OM4 Standard
- 50/125 µm Core Diameter
- OFNR (Riser) Rated
- 1m – 500m in length
LDLD-SM402B3RXX* – *Replace last two letters “XX” with a Cable Length Code. All lengths are in Meters. Valid Codes: 01, 02, 03, 05, 07, 10, 15, 20, 25, 30, 40, 50, 60, 75, 0C (100m), CD (125m), CL (150m), CC (200m), 3C (300m), 0D (500m)
