Description
Single-mode (G.657.A2) LC-LC Duplex UltraHD EZ-Tab Low-Loss Cable. Use this 9/125 SM (Yellow) UltraHD EZ-Tab Low-Loss Cable for 10G/100G fiber networks.
The solution to manage overcrowded high density patch panels has finally arrived!

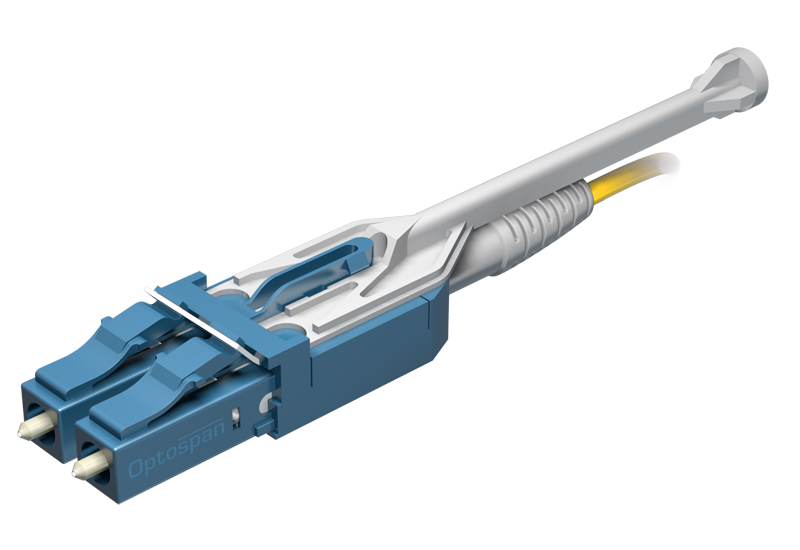

Introducing OptoSpan UltraHD EZ-Tab Low Loss fiber patch cables, specifically designed to address the inconvenience brought upon by overpopulated fiber distribution panels. Each UltraHD EZ-Tab cable is equipped with a unique trigger mechanism designed to alleviate the struggle of during installing and removing network cable from high density fiber panels. These specialized UltraHD EZ-Tab cables make managing any high density panels easy so you no longer have to hassle with stiff boots that interfere access around other connectors; simply push or pull the tab on the connector and instantly insert or remove a LC fiber patch cable–no separate extraction tools required!
In addition, the UltraHD EZ-Tab Low Loss patch cables feature a superior performance proprietary LC ferrule which reduces the connector insertion loss (IL) to less than .09dB (ordinary LC IL is .30dB), resulting in a clear optical signal for higher bandwidth applications.
UltraHD EZ-Tab Exclusive Features:
- Easily Install/Remove LC cables in patch panels
- Push/Pull Tabs for easy install/release
- Ultra Low Loss for superior network performance
- OM4 Bend Insensitive Fiber
These unique features make this the highest performing cable solution for high density patch panels and tight spaces. Exclusively available from OptoSpan, they are an ideal complement to OptoSpan Ultra Elite and Ultra Density series patch panels.
Custom configurations available.
Click Here for additional information on OptoSpan Single-mode Bend Insensitive Fiber Optic Cables.
Key Features:
-
- UltraHD EZ-Tab Low-Loss Cable
- LC-LC Connectors
- Duplex
- Single-mode G.657.A2 Communication
- Color – Yellow
- SM Standard
- 9/125 µm Core Diameter
- OFNR (Riser) Rated
- 1m – 500m in length
LHLH-SS202B3RXX* – *Replace last two letters “XX” with a Cable Length Code. All lengths are in Meters. Valid Codes: 01, 02, 03, 05, 07, 10, 15, 20, 25, 30, 40, 50, 60, 75, 0C (100m), CD (125m), CL (150m), CC (200m), 3C (300m), 0D (500m)
