Wall Mount Fiber Patch Panels

Wall Mount– Select WM Series (Premium)

OptoSpan’s Wall Mount Termination and Splicing Enclosures provide a convenient, secure and organized housing for fiber optic connections and terminations, as well as a central point for splicing fiber optic cables for indoor or outdoor installations.The Wall mount fiber enclosures are frequently employed in a diverse range of applications, including data centers, telecommunication rooms, fiber-to-the-home (FTTH) installations and enterprise networks.

WM-48

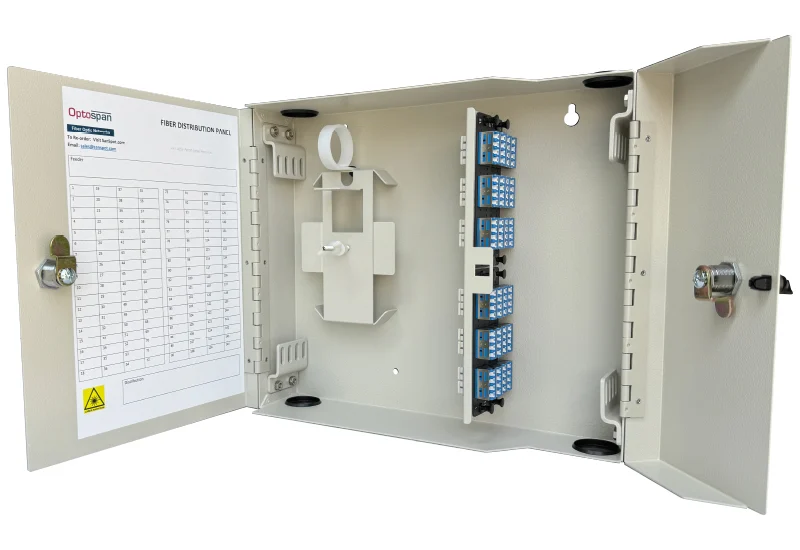

WM-48 Wall Mount Panel

WM-48 Patch Panels

The WM-48 patch panel can be pre-configured with up to four (4) MTP-LC cassettes, up to forty-eight (48) pass-through LC, SC, ST, or FC adapters, and up to forty-eight (48) fiber splicing capacity, for a maximum capacity of 874 fibers. This wall-mounted patch panel includes cable management accessories, including cable ties, cable clips, and a grid label sticker, to support and organize cables, thereby reducing the risk of damage or tangling. Splice trays, pigtails, and multi-fiber (MTP/MPO) cables are available as optional accessories and can be pre-configured for use with this panel.

Download WM-48 Datasheet
WM-48 Datasheet Cover
WM-96
WM-96 Wall Mount Panel

WM-96 Patch Panels

The WM-96 patch panel has two sections for fiber optic cable entry and exit. It can be pre-configured with up to eight (8) MTP-LC cassettes, up to ninety-six (96) pass-through LC, SC, ST, or FC adapters, and up to ninety-six (96) fiber splicing capacity. This wall-mounted patch panel includes cable management accessories, including cable ties, cable clips, and a grid label sticker, to support and organize cables, thereby reducing the risk of damage or tangling. Splice trays, pigtails, and multi-fiber (MTP/MPO) cables are available as optional accessories and can be pre-configured for use with this panel.

Download WM-96 Datasheet
WM-96 Datasheet pdf

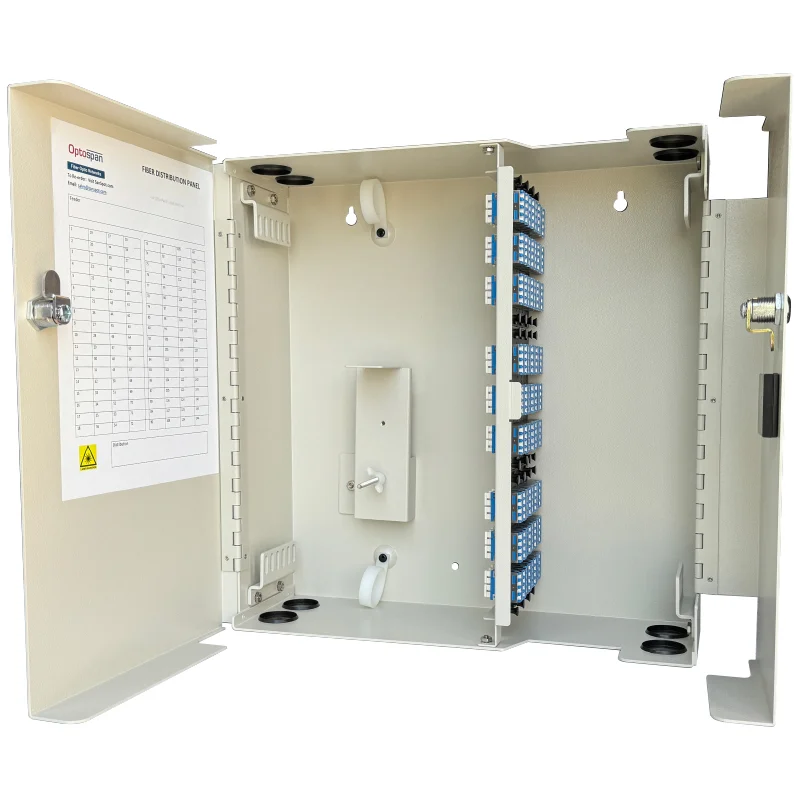

WM-144 Wall Mount Panel
WM-144 Wall Mount Panel

WM-144 Patch Panels

The WM-144 patch panel has two sections for fiber optic cable entry and exit. It can be pre-configured with up to twelve (12) MTP-LC cassettes, up to one hundred and forty four (144) pass-through LC, SC, ST, or FC adapters, and up to one hundred and forty four (144) fiber splicing capacity. This wall-mounted patch panel includes cable management accessories, including cable ties, cable clips, and a grid label sticker, to support and organize cables, thereby reducing the risk of damage or tangling. Splice trays, pigtails, and multi-fiber (MTP/MPO) cables are available as optional accessories and can be pre-configured for use with this panel.

Download WM-144 Datasheet
WM-144 Datasheet pdf
WM-288
WM-288 Wall Mount Panel

WM-288 Patch Panels

The WM-288 patch panel can be pre-configured with up to twenty-four (24) MTP-LC cassettes, two hundred and eighty eight (288) pass-through LC, MDC, MMC, SN, SC, ST, or FC adapter panels, and up to two hundred and eighty eight (288) fiber splicing
capacity. The cable glands, and a pole mounting kit are available for this panel. Splice trays, pigtails, and multi-fiber (MTP/MPO) cables are available as optional accessories and can be pre-configured for use with this panel.

Download WM-288 Datasheet
WM-288 Datasheet pdf
