OUTDOOR NEMA 4x NP SERIES PATCH PANELS

NP Series Outdoor Waterproof Patch Panels provide a secure housing for fiber optic connectors and cables and are engineered to withstand exposure to severe environmental conditions, making them crucial components for a variety of industrial and telecommunications applications. These NEMA patch panels have sections for incoming and outgoing fiber optic cables

SELECT FEATURES

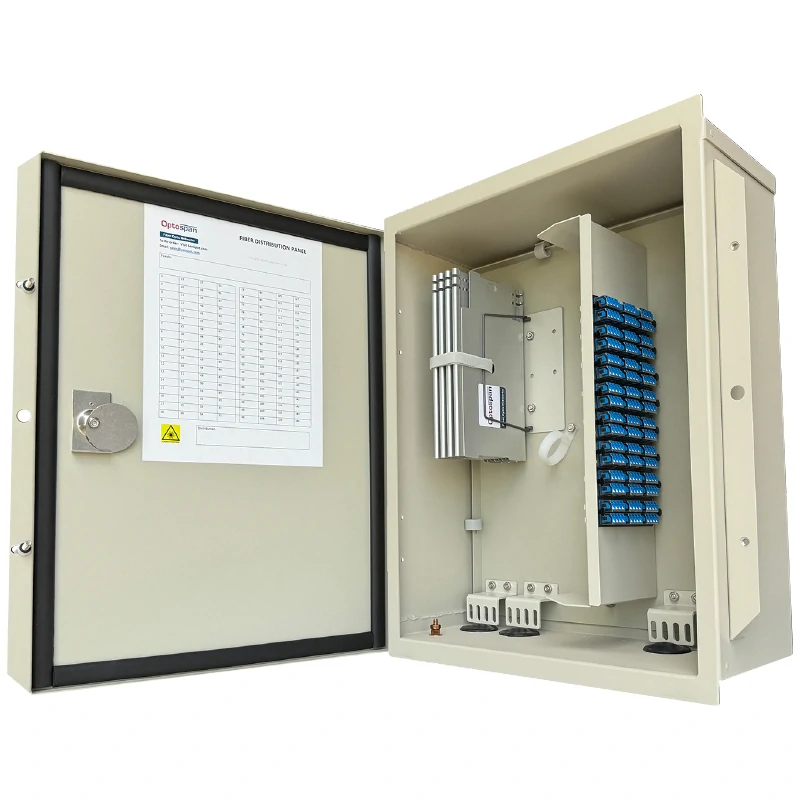

NP-144 Panel

vflads

ADS & VFL

FIBER PATCH PANEL APPLICATIONS

NP series outdoor panels can be pre-configured with multiple MTP-LC cassettes, pass-through LC, SC, ST or FC adapters, and expandable fiber splicing capacity. Lockable gasketed doors and stainless steel hardware are features of these enclosures. The waterproof patch panels include cable management accessories such as cable ties, rack mounting screws, and a grid label sticker to support and organize cables, thereby reducing the risk of damage or tangling. Optional splice trays, pigtails, outdoor fiber optic cables with cable glands, and a pole mounting kit are available for these panels.

Select NP Series :

The Select NP series of Outdoor Waterproof Nema 4x panels are our premium line of fiber optic patch panels featuring the highest fiber counts, and most versatile compatibility:

Exclusive Feature

IP5x Rated Adapter Panels with Automated Dust Shield

Select Series Patch Panels feature OptoSpan’s exclusive LC, MDC, MMC or SN Adapter Panels with an IP5x compliant 100% automated dust shield to keep the connectors clean and prevent network failures. No Dust Caps Required!

“The leading cause of packet corruption and link downtime in the fiber optic network are the contaminated connectors.”

RELATED PRODUCTS

WM Select Series

Wall Mount Panels

RM Select Series

Rack-Mount Panels
NP SELECT SERIES OUTDOOR NEMA 4X MODELS

Model NP-24 Select Series

Fiber Patch Panel

Panel Quick Specs

  •  Waterproof & corrosion resistant
  •  19”L x 10.3”W x 4.4”D (9lbs)
  •  (4) 7/8” Diameter Bottom Access
  •  2x (12F) HD MTP-LC Cassettes
  •  2x (12F) HD Series Adapter Panels.
  •  Pass through options available
  •  2x (12F) Splice Trays
  •  Made in the USA

Download Datasheet

Model NP-96 Select Series

Fiber Patch Panel

Panel Quick Specs

  •  Waterproof & corrosion resistant
  •  22”L x 17.1”W x 7.1”D (20lbs)
  •  4x 1 5/8 Diameter Bottom Access
  •  8x (12F) HD MTP-LC Cassettes
  •  8x (12F) HD Series Adapter Panels
  •  Pass through options available
  •  4x 24F Splice Trays
  •  Made in the USA

Download Datasheet

Model NP-144 Select Series

Fiber Patch Panel

Panel Quick Specs

  •  Waterproof & corrosion resistant
  •  22”L x 17.1”W x 7.1”D (20lbs)
  •  4x 1 5/8 Diameter Bottom Access
  •  12x (12F) HD MTP-LC Cassettes
  •  12x (12F) HD Adapter Panels
  •  Pass through options available
  •  6x 24F Splice Trays
  •  Made in the USA

Download Datasheet

Model NP-288 Select Series

Fiber Patch Panel

Panel Quick Specs

  •  Waterproof & corrosion resistant
  •  33”L x 18.92”W x 8.31”D (31lbs)
  •  7x 1 5/8 Diameter Bottom Access
  •  24x (12F) HD MTP-LC Cassettes
  •  24x (12F) HD Adapter Panels
  •  Pass through options available
  •  6x 24F Splice Trays
  •  Made in the USA

Download Datasheet

OUTDOOR NP SELECT MODEL COMPARISON
OptoSpan NP Series Panel
Specifications and Max Capacity 		Outdoor Fiber Cable Compatibility
with NP Series Panels
Model  Type  # Slots Max. Fibers # HD Series Cassettes # HD Adapter Panels # Splice Trays # Entry Ports Entry Port Size Cable Glands for Entry Ports SteelFlex- IP68 SteelMax- IP68 SteelPatch- IP68 TPU-IP68
Incl. Incl. Opt. Opt. Opt. Incl. Incl. Opt. Opt. Opt. Opt. Opt.
NP-24-LC LC 2 48 2 2 2 4 7/8" ✓ ✓ ✓ ✓ ✓
NP-96-LC LC 8 192 8 8 6 4 1 5/8" ✓ ✓ ✓ ✓ ✓
NP-144-LC LC 12 288 12 12 6 4 1 5/8" ✓ ✓ ✓ ✓ ✓
NP-288-LC LC 24 576 24 24 12 7 1 5/8" ✓ ✓ ✓ ✓ ✓
NP-24-MDC  MDC  2 144 0 2 0 4 7/8" ✓ ✓ ✓ ✓ ✓
NP-96-MDC MDC 8 576 0 8 0 4 1 5/8" ✓ ✓ ✓ ✓ ✓
NP-144-MDC MDC 12 864 0 12 0 4 1 5/8" ✓ ✓ ✓ ✓ ✓
NP-288-MDC MDC 24 1728 0 24 0 7 1 5/8" ✓ ✓ ✓ ✓ ✓
NP-24-MMC MMC 2 864 0 2 0 4 7/8" ✓ ✓ ✓ ✓ ✓
NP-96-MMC MMC 8 3456 0 8 0 4 1 5/8" ✓ ✓ ✓ ✓ ✓
NP-144-MMC MMC 12 5184 0 12 0 4 1 5/8" ✓ ✓ ✓ ✓ ✓
NP-288-MMC MMC 24 10368 0 24 0 7 1 5/8" ✓ ✓ ✓ ✓ ✓
NP-24-SN SN 2 96 0 2 0 4 7/8" ✓ ✓ ✓ ✓ ✓
NP-96-SN SN 8 384 0 8 0 4 1 5/8" ✓ ✓ ✓ ✓ ✓
NP-144-SN SN 12 576 0 12 0 4 1 5/8" ✓ ✓ ✓ ✓ ✓
NP-288-SN SN 24 1152 0 24 0 7 1 5/8" ✓ ✓ ✓ ✓ ✓
ADAPTER PANELS  FOR SELECT NP SERIES

LC Fiber Adapter Panel

Download Datasheet

MDC Fiber Adapter Panel

Download Datasheet

MMC Fiber Adapter Panel

Download Datasheet

SN Fiber Adapter Panel

Download Datasheet

Select Series Adapter Panels are compatible with OptoSpan RM Series (Rack Mount), WM Series (Wall Mount) and NP Series (Outdoor
Waterproof) patch panels. They are frequently employed in a diverse range of applications, including data center enclosures, telecommunication networks and enterprise networks.
