CWDM Mux Demux

CWDM Mux/Demux

OptoSpan CWDM multiplexers provide the most robust and low-cost bandwidth upgrade for your current fiber optic communication networks. All our CWDM Mux Demux systems are based on thin film filter technology and metal bonding micro optics packaging. OptoSpan provides high quality CWDM with flat channel bandwidth, flexible channel configuration, low insertion loss and high isolation. All OptoSpan products are epoxy-free in the optical path.  Each CWDM module supports ESCON, ATM, Fibre Channel, and Gigabit Ethernet over each port.  Available in 4+2, 8+1, and 16 channel.  Other OptoSpan WDM Network Extensions include Bidi Box – 2 to 1 Fiber Converter and DWDM Mux/Demux.

Click Here for additional information on OptoSpan WDM (Wavelength Division Multiplexing).

For all other OptoSpan Patch Panels & WDM products, please see Loaded Patch Panels, Panel Enclosures, Fiber Cassettes (MTP/MPO), and Fiber Adapter Panels.

Features:

  • CWDM Mux Demux Multiplexers
  • Low Insertion Loss
  • High Channel Isolation
  • Epoxy-Free Optical Path

Applications:

  • Metro-Core, Metro-Access and Enterprise Networks
  • Enterprises with Fiber Infrastructure
  • Networks requiring ATM, Escon, Fibre Channel &
    Gigabit Ethernet Simultaneously
  • Mirroring/Replicating data to Disaster Recovery Sites
CWDM Mux/Demux

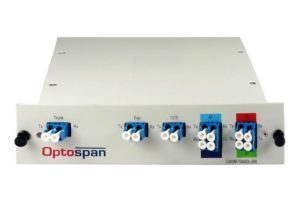

CWDM 4+2 Channel

OptoSpan CWDM-T04SDL-000 system provides the most robust and low-cost bandwidth upgrade for your current fiber optic communication networks. All our CWDM systems are based on thin film filter technology and metal bonding micro optics packaging. OptoSpan provides high quality CWDM with flat channel bandwidth, flexible channel configuration, low insertion loss and high isolation. All OptoSpan products are epoxy-free in the optical path. Each CWDM-T04SDL-000, with optional expansion, can transmit and receive up to 12 connections of different standards, data rates or protocols over one single fiber optic link without disturbing each other. Each CWDM module supports ESCON, ATM, Fibre Channel, and Gigabit Ethernet over each port.

CWDM Mux/Demux

CWDM 8+1 Channel

OptoSpan CWDM-T08SUL-000 system provides the most robust and low-cost bandwidth upgrade for your current fiber optic communication networks. All our CWDM systems are based on thin film filter technology and metal bonding micro optics packaging. OptoSpan provides high quality CWDM with flat channel bandwidth, flexible channel configuration, low insertion loss and high isolation. All OptoSpan products are epoxy-free in the optical path. Each CWDM-T08SUL-000, with optional expansion, can transmit and receive up to 16 connections of different standards, data rates or protocols over one single fiber optic link without disturbing each other. Each CWDM module supports ESCON, ATM, Fibre Channel, and Gigabit Ethernet over each port.

CWDM Mux/Demux

CWDM 16 Channel

OptoSpan CWDM-T16SXL-000 system provides the most robust and low-cost bandwidth upgrade for your current fiber optic communication networks. All our CWDM systems are based on thin film filter technology and metal bonding micro optics packaging. OptoSpan provides high quality CWDM with flat channel bandwidth, flexible channel configuration, low insertion loss and high isolation. All OptoSpan products are epoxy-free in the optical path. Each CWDM-T16SXL-000, combined with CWDM-T08SUL-000, can transmit and receive up to 16 connections of different standards, data rates or protocols over one single fiber optic link without disturbing each other. Each CWDM module supports ESCON, ATM, Fibre Channel, and Gigabit Ethernet over each port.
