FIBER OPTIC PATCH PANELS AND WDM

Patch Panels

OptoSpan’s fiber optic patch panels will help make the most of any limited space with the highest quality options to create the finest fiber system for any area. Choose from a selection of pre-terminated fiber optic patch panels, or build your own personalized fiber optic patch panel with a variety of the following fiber optic enclosures, MTP/MPO fiber cassettes, fiber adapter panels, adapters/couplers, attenuators, and OptoSpan Fiber Optic Cables individually offered to customize and fulfill any particular specifications.

Also presenting the highest performing products for optical networking based on Wave Division Multiplexing (WDM) technology. Offering CWDM and DWDM Multiplexer/Demultiplexer (Mux/Demux) units for up to 16 or 32 independent network connections on one fiber pair, as well as Bidi Boxes offered as OptoSpan’s instant Single-Fiber Network converters, and SAN Extension Bundles for premium out of the box WDM solutions. Pair OptoSpan WDM products with OptoSpan Optical Transceivers, and OptoSpan Fiber Optic Cables to ensure the highest quality system.

Patch Panels

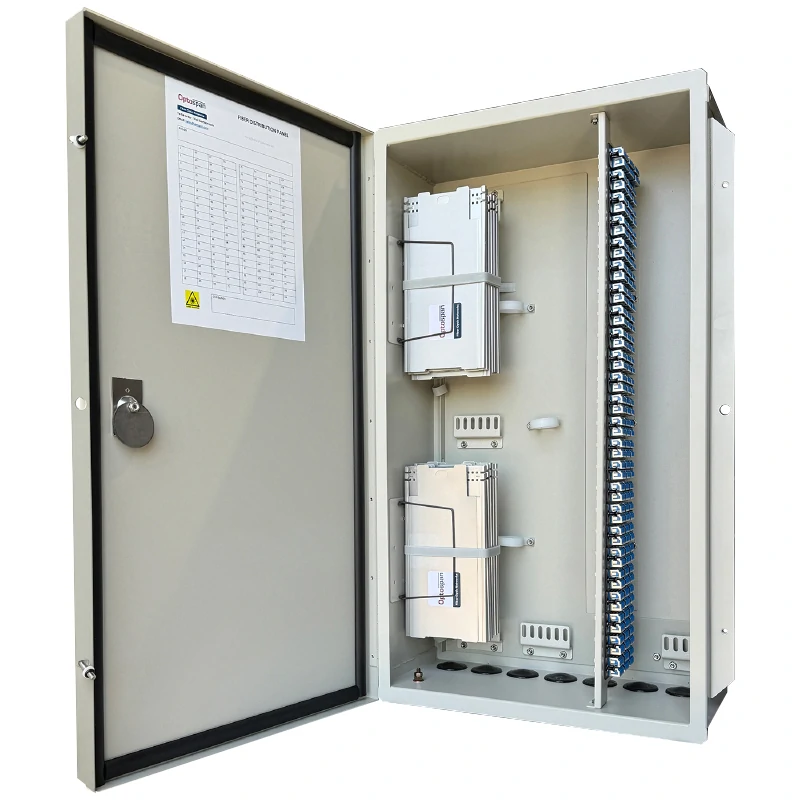

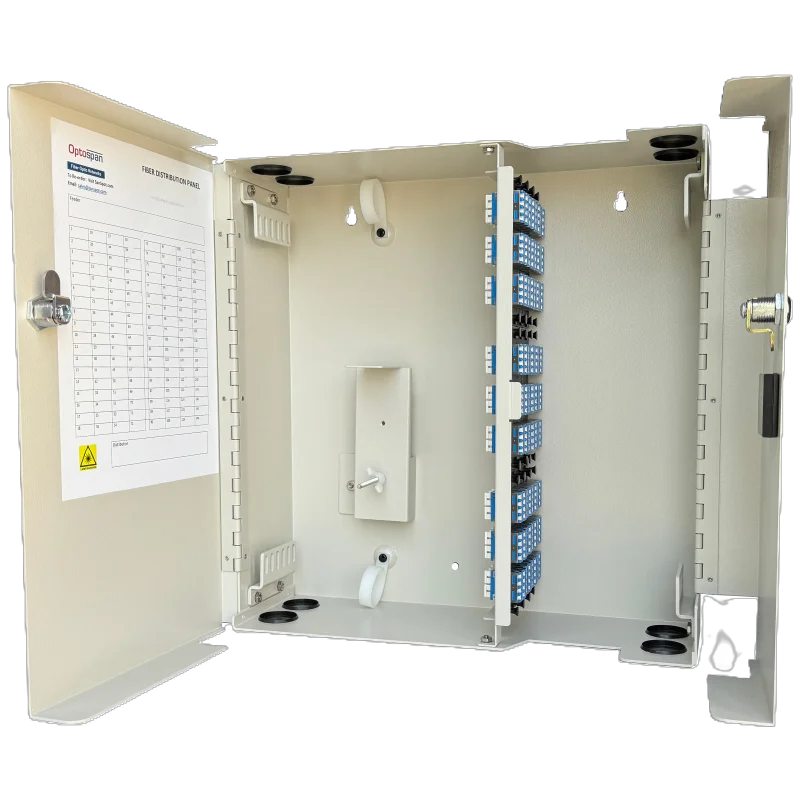

Fiber Optic Patch Panels

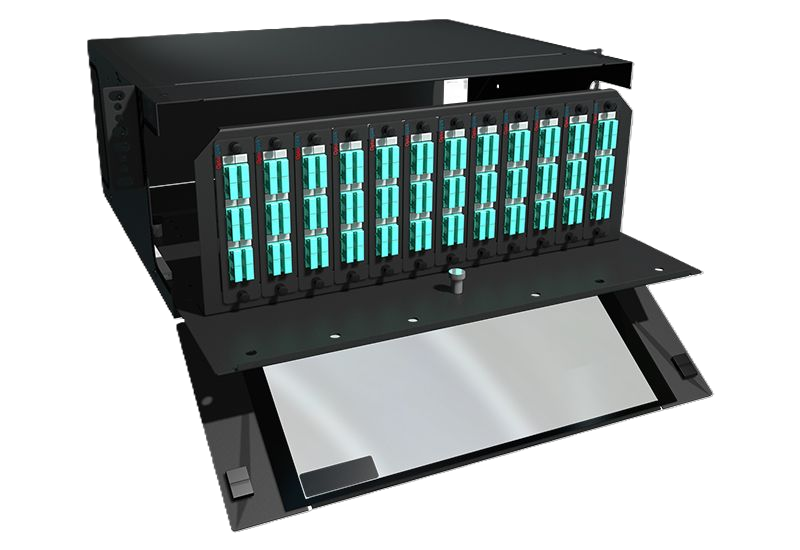

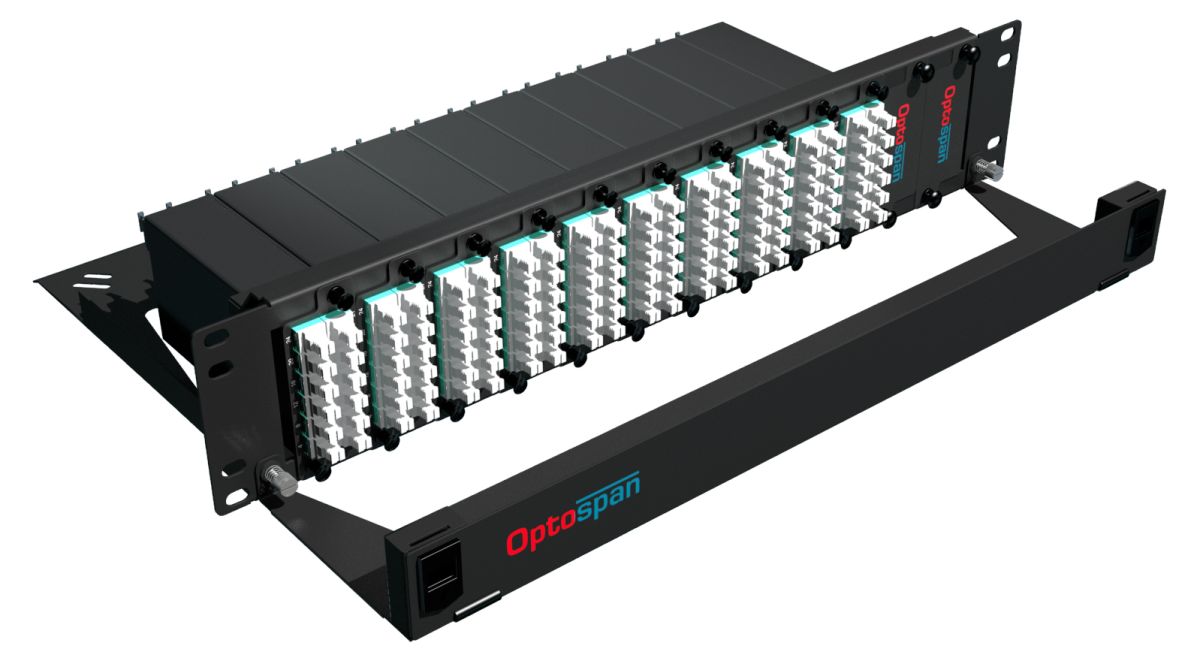

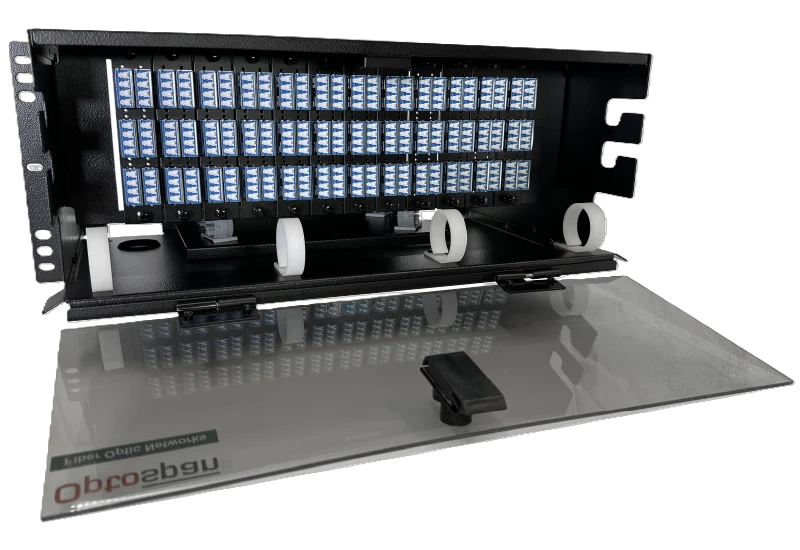

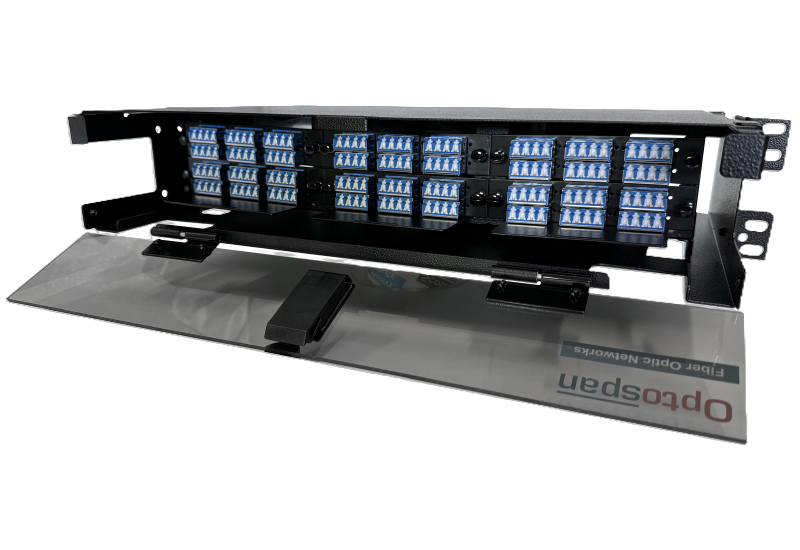

OptoSpan’s fully loaded fiber optic patch panels come in a range of selections ready to install and operate for dependable use in convenient time. These pre-terminated panels are available in different series intended for unique density requirements. Choose from Ultra Elite series, Ultra Density series, High Density series, or MPO series for adaptability.

Patch Panel Enclosures

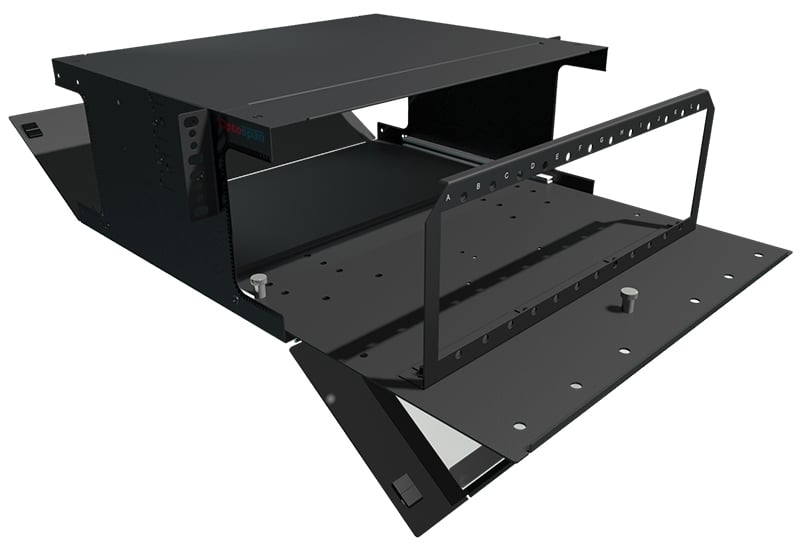

Patch Panel Enclosures

OptoSpan’s modular fiber optic patch panel enclosures can be custom configured with adapter cassettes or plates. Customized configurations designed for a range of fiber distribution requirements. Choose from Ultra Elite series, High Density series and MPO series.

Matrix Ultra Elite Adapter Cassettes

Fiber Cassettes (MTP/MPO)

OptoSpan’s pre-terminated MTP/MPO Fiber Cassettes provide a high density connection from LC, LC/APC, or SC fiber ports to MTP/MPO backbone trunks. Featured options include 12 fiber ports or 24 fiber ports in single-mode or multimode selections per MPO/MTP connection. Choose from High Density (HD) LGX series and MPO series

Patch Panel Adapter Plates

Fiber Adapter Panels

OptoSpan’s pre-loaded Fiber Adapter Panels are designed to make the most of limited rack space. High density network expansion is achieved by providing MTP/MPO connectivity between LC, LC APC, and SC fiber ports. Featured options include 6-port, 12-port duplex and 24-port quad single-mode or multimode connections. Choose from High Density LGX Series and MPO Series.

WDM

WDM

OptoSpan presents passive optical CWDM and DWDM multiplexer/demultiplexer modules providing long distance coverage with premium optical technology to enhance fiber optic systems. These optical mux/demux modules provide low-cost bandwidth and are easy to upgrade with system expansion. Delivering low insertion loss, CWDM/DWDM multiplexer and demultiplexer modules hold up to 16 connections of different standards and data rates over one fiber optic link without disruption.
