40G and 100G Transceivers

CFP Transceivers

OptoSpan offers several 40G and 100G Transceiver modules to support the transmission of very high-speed digital signals, providing a bandwidth of 40G or 100G, with distances reaching up to 40 kilometers. These include 40G CFP transceiver and 100G CFP transceivers as well as 40G QSFP+ transceivers.

40G and 100G Transceivers Series

OptoSpan offers two lines of 40G QSFP+ transceiver modules for different compatibility:
Standard series transceivers are compatible for use with brands such as Finisar, Avago, JDSU, and other generic brands, and Platinum OEM Series transceivers are Cisco compatible and specifically designed for compatibility requirements including Cisco, Brocade, Juniper, Alcatel, HP, Nortel, EMC, QLogic, and other OEM networks.

For all other OptoSpan Fiber Optic Transceivers, please see SFP+ Transceivers, XFP Transceivers, SFP Transceivers, X2 Transceivers, or XENPAK Transceivers.

40G and 100G Transceiver Technical Features

All OptoSpan 40G and 100G Transceivers are ROHS compliant, allow for real-time diagnostic monitoring as per SFF-8472 and designed to meet Multi-Source Agreement (MSA) standards for Duplex transceivers with LC interface.

Click Here for additional information on OptoSpan Transceivers.

Functional Benefits:

  • 10m to 40K @ 40-100Gbps
  • -0°C – 70°C Temperature – Extended/Industrial Available
  • 2-Wire Interface Digital Diagnostic Monitoring (SFF-8724)
  • MDIO interface with integrated Digital Diagnostic Monitoring
  • Hot-swappable for CFP/QSFP+ ports
  • OptoSpan 1 year Standard warranty
  • Extended 2 year Platinum OEM warranty
  • Exclusive Japanese OSAs
  • Laser Class 1 IEC / CDRH compliant
  • CFP MSA / QSFP+ MSA
  • RoHS compliant

Applications:

  • 40GBASE-ER4 Ethernet
  • 40GBASE-LR4 Ethernet
  • 40GBASE-SR4 Ethernet
  • 40GBE and 10GBE interconnects
  • 40G Telecom connections
  • 100G OTN/OTU4 4I1-9D1F
  • 100GBASE-LR4 100G Ethernet
  • Infiniband QDR and DDR
  • Other Optical Links

40G and 100G Transceiver Types

40G and 100G transceiver modules are available in 40G QSFP+ transceiver modules as well as 40G CFP, 100G CFP and 40G CFP to SFP+ converter transceivers.

TEMPL-OPTOSPAN-CFP

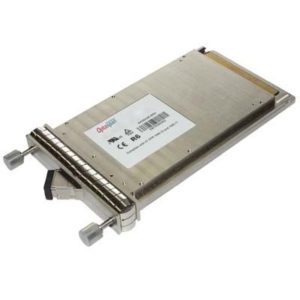

40G and 100G CFP Transceivers

OptoSpan CFP (C Form-Factor Pluggable) transceivers were developed to support the transmission of very high-speed digital signals, providing a bandwidth of 40G or 100G, with distances reaching up to 40 kilometers. CFP Transceiver modules are hot-swappable. Available for use with standard Duplex transmissions.

TEMPL-OPTOSPAN-QSFPPLUS

QSFP+ Transceivers

OptoSpan premium QSFP+ (Quad Small Form-Factor Pluggable) transceiver modules are designed or high-density fiber optic network applications, providing four channels of data into one pluggable interface. QSFP+ transceivers provide data rates of up to 40G and span distances of up to 10 kilometers, intended for use with short reach standard duplex equipment.

TEMPL-OPTOSPAN-CFP

CFP Converter Transceiver

OptoSpan’s CFP-40G-SPPCONV advanced CFP to SFP+ Converter is designed to convert CFP interface to 4 channel SFP+ Modules.

40G/100G Transceiver TypeApplicationTransmissionReachCompliance
CFP Transceivers40/100GBASE EthernetDuplex10km/20km/40kmCFP MSA, RoHS
QSFP+ Transceivers40GBASE EthernetDuplex150m/10kmSQFP+ MSA, SFF-8724, RoHS
CFP Converter Transceiver40GBASE EthernetDuplex1mRoHS

OptoSpan Advantage

OptoSpan 40G and 100G Transceivers are manufactured at the highest quality of standards in the industry. Upon request, OptoSpan will provide a technical drawing for complex, special order or custom items for customer verification. Compatible with Cisco QSFP+ transceiver modules such as QSFP-40G-SR4, Cisco QSFP-40G-CSR4, Cisco QSFP-40G-SR4-S, Cisco FET 40G, Cisco QSFP-40G-SR-BD, Cisco QSFP-40GE-LR4, Cisco QSFP-40G-LR4, and Cisco WSP-Q40GLR4L models.

In addition to offering compatible and complementary 40G/100G transceiver modules to the respective OEM portfolio of transceivers, OptoSpan 40G/100G transceivers offer the unique benefits of being tested and certified in brand specific networks and target applications and assembled using the highest quality raw components.

OptoSpan’s 40G/100G transceivers are certified in brand specific networks and target applications. OptoSpan 40G/100G transceivers have been used with Ethernet at the highest standards. Compatible with Finisar CFP, JDSU CFP, Source Photonics CFP, Oracle CFP, Extreme CFP, Force10 CFP, Huawei CFP, Avago CFP, Allied Telesis CFP, Apresia CFP, Transition Networks CFP, Cisco QSFP+, HP QSFP+, Brocade QSFP+, Juniper QSFP+, Alcatel QSFP+, Nortel QSFP+, EMC QSFP+, QLOGIC QSFP+, JDSU QSFP+, Oracle QSFP+, Extreme QSFP+, Dell QSFP+, Netgear QSFP+, Enterasys QSFP+, Force10 QSFP+, Apresia QSFP+, IBM QSFP+and more.
