OptoSpan fiber patch panels offer various solutions to support modern datacenter requirements. Whether a networking center demands shallow-depth panels measuring a mere 6” deep when fully-loaded, or the greatest amount of fiber connections in a single 1U form factor, yet ample room for any fiber splicing requirements, OptoSpan has numerous networking solutions ready to be tailored to your unique information technology demands.
Each fiber patch panel offered by OptoSpan has been constructed using premium connectors, including genuine MTP® and MTP Elite® connectors sourced directly from U.S. Conec®. These authentic connectors are essentially high-performance MPO connectors with an improved design generated to achieve a lower signal loss than any other multi-fiber connector in the industry.
OptoSpan Advantage:
- Authentic Pinned MTP® connector directly from U.S. Conec®
- Complete Pinned MTP® connector assembly, including floating ferrule
- Terminated and tested in a ISO 14000 (Class 7) quality controlled clean room
- Each comes with individual serial number, diagram, & certified test report
- Complimentary design & configuration assistance provided
- Five types of jackets – Standard, Plenum, Bend Insensitive, SteelPatch Armored, SteelFlex Armored
Exclusive Feature:
IP5x Rated Adapter Panels with Automated Dust Shield
Select Series Patch Panels feature OptoSpan’s exclusive LC, MDC, MMC or SN Adapter Panels with an IP5x compliant 100% automated dust shield to keep the connectors clean and prevent network failures. No Dust Caps Required!
“The leading cause of packet corruption and link downtime in the fiber optic network are the contaminated connectors.”

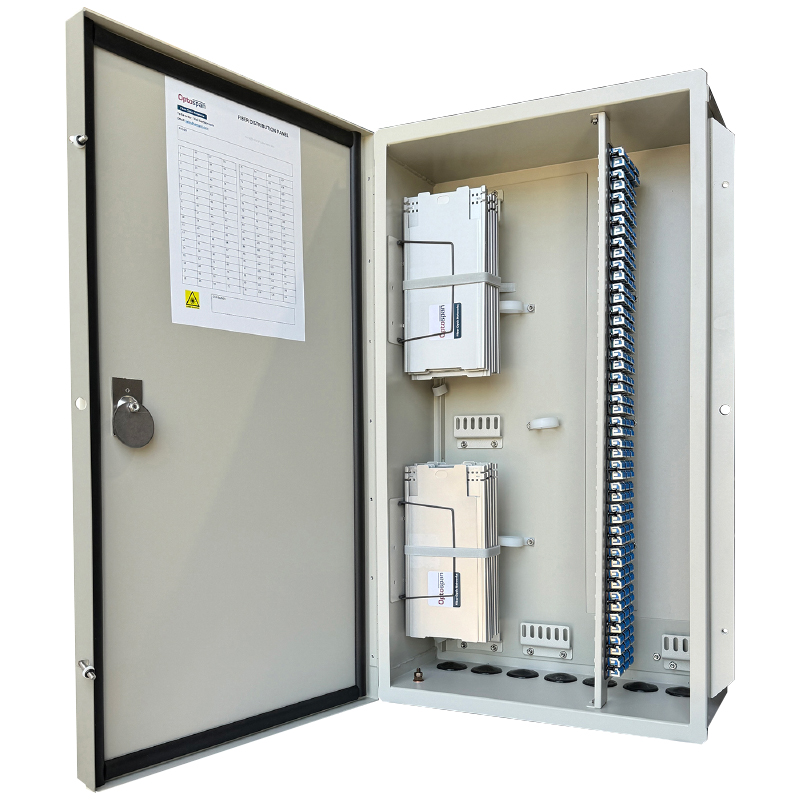

Outdoor Waterproof – Select NP Series (Premium)
OptoSpan’s NP Series Outdoor Waterproof Patch Panels provide a secure housing for fiber optic connectors and cables and are engineered to withstand exposure to severe environmental conditions, making them crucial components for a variety of industrial and telecommunications applications. These NEMA patch panels have sections for incoming and outgoing fiber optic cables.
Select NP series
NP series outdoor panels can be pre-configured with multiple MTP-LC cassettes, pass-through LC, SC, ST or FC adapters, and expandable fiber splicing capacity. Lockable gasketed doors and stainless steel hardware are features of these enclosures. The waterproof patch panels include cable management accessories such as cable ties, rack mounting screws, and a grid label sticker to support and organize cables, thereby reducing the risk of damage or tangling. Optional splice trays, pigtails, outdoor fiber optic cables with cable glands, and a pole mounting kit are available for these panels.

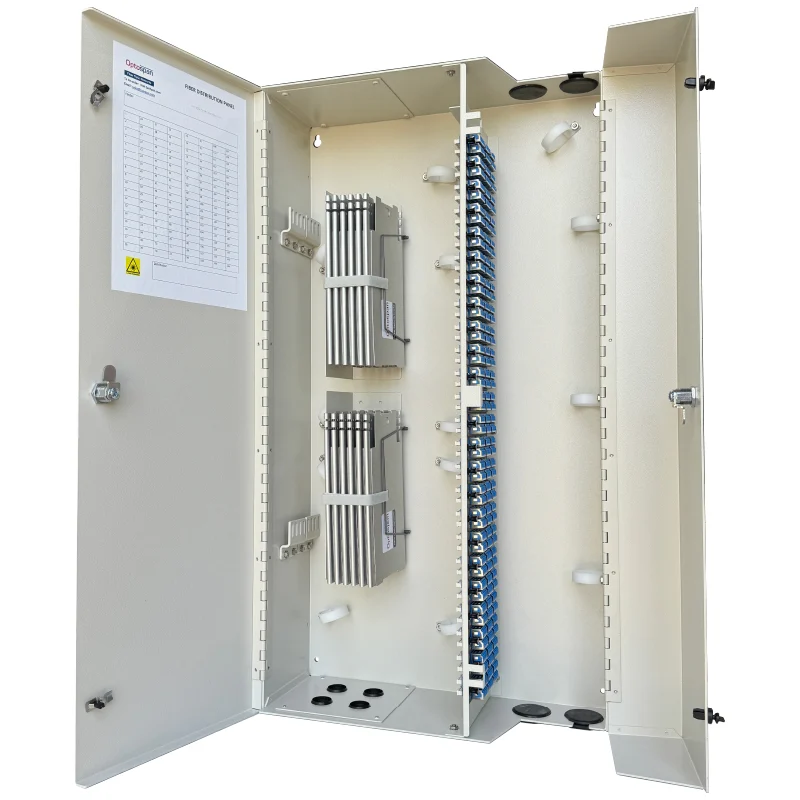

Wall Mount– Select WM Series (Premium)
OptoSpan’s Wall Mount Termination and Splicing Enclosures provide a convenient, secure and organized housing for fiber optic connections and terminations, as well as a central point for splicing fiber optic cables for indoor or outdoor installations.
Select WM series
The Wall mount fiber enclosures are frequently employed in a diverse range of applications, including data centers, telecommunication rooms, fiber-to-the-home (FTTH) installations and enterprise networks. These wall mount fiber termination enclosures are crucial to keeping fiber optic networks running smoothly and efficiently because of the roles they play in organizing and safeguarding fiber optic connections.

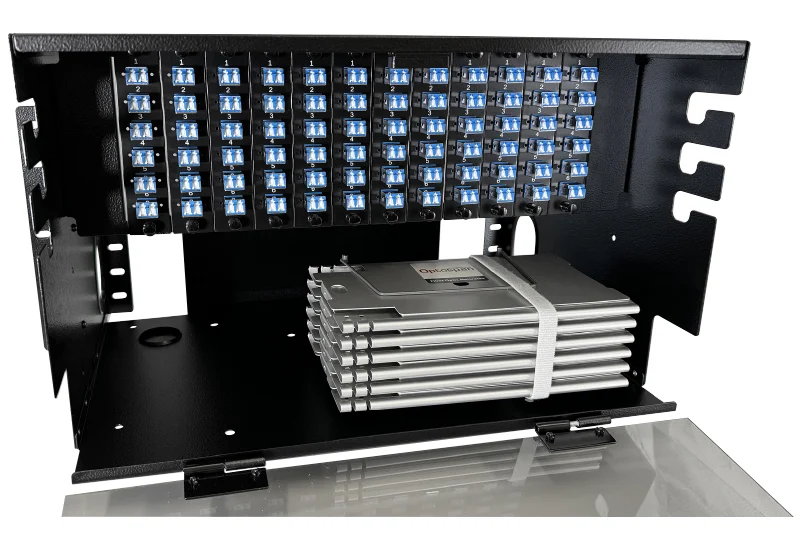

Rack Mount– Select RM Series (Premium)
OptoSpan’s Select Rack Mount Termination and Splicing Enclosures provide a convenient, secure and organized housing for fiber optic connections and terminations, as well as a central point for splicing fiber optic cables for data center and telecom applications.
RM Select series
Rack mount fiber enclosures are frequently employed in a diverse range of applications, including data centers, telecommunication rooms and enterprise networks. These Rack mount fiber termination enclosures are crucial to keeping fiber optic networks running smoothly and efficiently because of the roles they play in organizing and safeguarding fiber optic connections.
Rack Mount– Matrix Series
OptoSpan’s Matrix Rack Mount Termination and Splicing Enclosures provide a convenient, secure and organized housing for fiber optic connections and terminations, as well as a central point for splicing fiber optic cables for data center and telecom applications.
RM High Density series
High Density series fiber patch panels are the most customizable fully-loaded panels OptoSpan offers, delivered ready-to-use and complete with the necessary rack mounting accessories for quick installation. Compatible with standard LGX cassettes or adapter plates, available for LC, SC, and MTP® (high performance MPO) connections.
RM Ultra Elite series
OptoSpan Ultra Elite series fiber patch panels are the highest density fully-loaded modular panels offered with only a slim 6” depth, making them ideal for compact data centers and tighter network racks. Equipped with genuine US Conec MTP Elite® (highest performance MPO) connectors.
RM Ultra Density series
Ultra Density series fiber patch panels are the highest density loaded fiber patch panels offered by OptoSpan. These slim, dense panels are built with either an angled or flat front, making them perfect for tight data centers or shallow network racks. Equipped with genuine US Conec MTP Elite® (highest performance MPO) connectors.
