1U LGX Fiber Patch Panel 24 Port LC-MTP Multimode

1U LGX Fiber Patch Panel 24 Port LC-MTP Multimode

Product Inquiry
Part #: HPQ3-LDZVZD-1AF Category: .

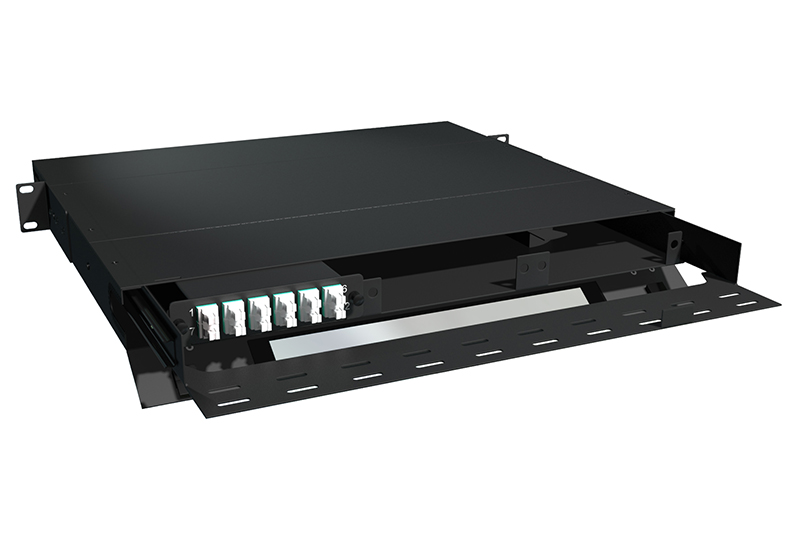

OptoSpan fully loaded LGX 1U Fiber Patch Panel. This 16 Gauge Steel (Black) fiber patch panel is loaded with Qty. 1 24 fiber Multimode (OM3/OM4) LGX fiber cassettes with a total of 24 LC (12 Duplex LC) fiber ports in front and 2 MTP Elite (12 Fiber Connector) Male/Pinned rear ports. Factory configured for Polarity Method A and designed for implementations in 10G/100G networks, this fiber patch panel is designed for low insertion loss of .15dB. Maximum expandable to 72 LC fiber ports.

Click Here for additional information on OptoSpan High Density Series Patch Panels.

Key Features:

  • 24 LC Ports in 1U
  • 2 MTP Elite (12 Fiber) Connectors in Rear for Core Connection
  • Available with up to 288 LC Fiber Ports in 4U
  • Splicing Kit Available (Optional)
  • LC Pigtails, splice trays and Splice Sleeves Available

Additional information

Dimensions1 in

Matrix High Density




LC (Fr)-MTP Elite Pinned (Re)




24 Fiber
