MPO & MTP FIBER CASSETTES

OptoSpan’s pre-terminated Fiber Cassettes provide a high density connection from LC, LC/APC, or SC fiber ports to MTP/MPO backbone trunks. Featured options include 12 fiber ports or 24 fiber ports in single-mode or multimode selections per MPO/MTP connection. Available in High Density (HD) LGX series and MPO series.

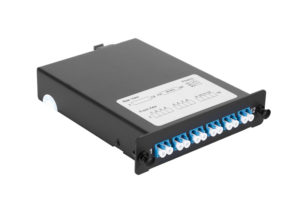

HCQ9-LDHVZS-XAF

Ultra Elite Series

Ultra Elite MTP cassettes are the most compact multifiber modules currently offered by OptoSpan. These MTP cassettes are available in various configurations including OS2, OM3, and OM4 along with either 12 fiber or 24 fiber rear ultra-low loss connectors and 24 individual front LC connections, complete with a port identification label to efficient fiber management. Each module has been constructed using the improved MPO connector, the MTP® by U.S. Conec which incorporates redesigned mechanical components allowing for a much lower amount of signal loss when compared to traditional MPO connectors. These MTP cassettes feature a tool-less design and may be inserted or removed from a compatible patch panel hassle-free

High Density series

High Density series fiber cassettes come in a standard LGX form factor making it compatible with any LGX fiber optic patch panel enclosure. Available in OS2, OM3, or OM4 these adapter modules are constructed with either 12 or 24 rear ultra-low loss connectors and 24 front LC or 12 front SC connectors. Each module has been constructed using the improved MPO connector, the MTP® by U.S. Conec which incorporates redesigned mechanical components allowing for a much lower amount of signal loss when compared to traditional MPO connectors.

MPO series

MPO series fiber cassettes are available in OS2 or OM3/OM4, providing either 12 or 24 fiber MPO connectors in the rear and 12 SC or 24 LC individual fiber connections in the front. The top of the unit features a port identification label, allowing easy fiber management directly on the adapter module. Each unit features a tool-less design, allowing them to be inserted or removed from their respective fiber panels hassle-free.

Click Here for additional information on OptoSpan Patch Panels & WDM.

For all other OptoSpan Patch Panels & WDM products, please see Loaded Patch Panels, Panel Enclosures, Fiber Adapter Panels, and WDM.

Matrix Ultra Elite Adapter Cassettes

Ultra Elite MTP Cassettes
Ultra Elite series loaded MTP cassettes are compatible with the most slim and dense patch panels and enclosures OptoSpan has to offer. These MTP cassettes are available in 24-fiber single-mode (OS2) or multimode (OM4) LC duplex LGX connections. Install up to six MTP cassettes per 1U Ultra Elite Patch Panel, for up to 144 fiber ports in 1U.

Matrix High Density series Cassettes

High Density Fiber Cassettes
LHigh Density LGX fiber cassettes come in 6-port and 12-port single mode or multimode duplex LGX configurations. These fiber Cassettes are compatible with OptoSpan’s HD series panel enclosures with up to three MTP/MPO fiber cassettes per 1U patch panel.

Matrix MPO series Cassettes

MPO Fiber Cassettes
MPO series fiber cassettes come in 6-port or 12-port single-mode or multimode duplex LC configurations and are compatible with OptoSpan’s MPO series panel enclosures. Install up to four MPO fiber cassettes per 1U patch panel.

Cassette SeriesFiber CountModeConnector Types
Ultra Elite24 FiberOM4
OS2
24 Fiber MTP
12 Fiber MTP
High Density24 Fiber
12 Fiber
OM3/OM4
OS2
LC (Fr)-MTP-Elite Pinned (Re)
LC APC (Fr)-MTP Elite Pinned (Re)
SC (Fr)-MTP Elite Pinned (Re)
High Density24 Fiber
12 Fiber
OM3/OM4
OS2
LC (Fr)-MTP/MPO(Re)
SC (Fr)-MTP/MPO(Re)
LC (Fr)-MTP/MPO APC (Re)
LC APC (Fr)-MTP/MPO APC (Re)
SC (Fr)-MTP/MPO APC(Re)
