HCQ9-LDZVZD-XAF

Fiber Cassette 24 LC to 2 MTP Single mode – High Density

Fiber Cassette 24 LC to 2 MTP Single mode – High Density

Product Inquiry
Part #: HCQ9-LDZVZD-XAF Category: .

Description

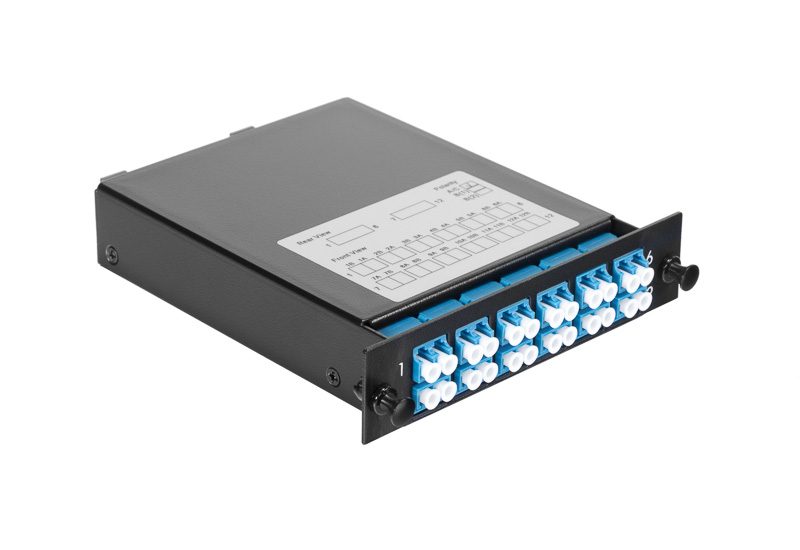

OptoSpan Matrix High Density (Matrix-HD) Series Adapter Cassette. This 16 Gauge Steel LGX type adapter cassette offers 24 Single-mode LC ports (12 Duplex LC) in the front, and 2 Low Loss MTP Elite (12 Fiber Connector) for connection to MTP/MPO backbone trunk. Compatible with Matrix-HD Series fiber optic patch panels.

Click Here for additional information on OptoSpan MTP-LC Fiber Cassettes.

Key Features:

  • Compatible with Matrix-HD Series Fiber Enclosures
  • Up-to 3 Fiber Cassettes per 1u Fiber Patch Panel
  • Flexibility to Mix Adaptor Panels with Cassettes in Patch Panel
  • Available with LC, LC/APC, SC, ST, FC and MTP/MPO Adapters
  • Easily Accessible MTP/MPO Ports for Connection to Trunk Cable

Additional information

series

Matrix High Density

adapter-type

LC (Fr)-MTP Elite Pinned (Re)

mode-media

OS2

fiber-count

24 Fiber
