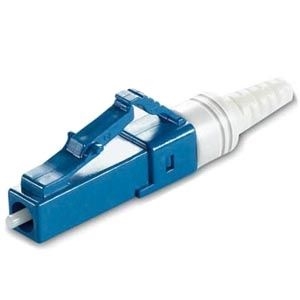

Field Installable Connector LC Single-mode (12-Pack) Blue

Field Installable Connector LC Single-mode (12-Pack) Blue

Field Installable Connector LC Single-mode (12-Pack) Blue

Product Inquiry +
SKU: OFSS-LXSXF0-XXX Category:

Description

OptoSpan FieldConnect LC 12-pack includes twelve pre-assembled and pre-polished Single-mode (Blue) field-installable fiber optic connectors, omitting the need for epoxy curing or hand polishing at the field site. Including an internal mechanical grip holding the fiber in place, there is no epoxy required which allows efficient and simple installation in under two minutes. OptoSpan FieldConnect LC connectors are color coded per industry-standard requirements for easy identification for during and after setup. Compatible with standard LC adapters, this pack comes with an assembly jig and a 250µm and 900µm tight buffered fiber holder for accurate alignment and fiber cleave upon terminating. Also offering, OptoSpan FieldConnect Installation Kit (Part# OFKD-XX0XX0-XXX), which includes the necessary tools needed for installation of any OptoSpan FieldConnect SC or LC Field-Installable Connectors. This kit allows immediate trouble-free installation with no required polishing, no epoxy, and no electrical power, granting less time spent on the installation site.

Click Here for additional information on OptoSpan Field Installable Connectors.

Key Features:

  • Precision Mechanical Splicing (index matching gel) insures low loss
  • Pre-stubbed, factory-polished ferrule
  • No epoxy required
  • Finished Connector meets UL94-V0 Flammability Rating
  • TIA/EIA 568-C.3 Compliant

Additional information

series

OptoSpan

mode-media

Single-mode
