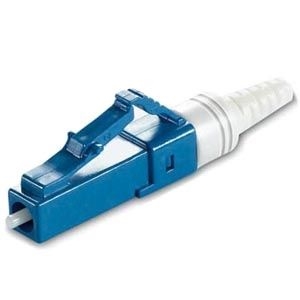

OptoSpan presents FieldConnect field-installable LC connectors designed for single-mode and multimode fibers. Each pack includes 12 pre-assembled, factory-polished field-installable LC connectors with a 250µm and 900µm tight buffered fiber holder and assembly jig for accurate alignment and fiber cleave when terminating. FieldConnect LC Connectors require no epoxy curing, as each connector uses index matching gel as an internal mechanical grip for effective and simple installation. FieldConnect LC connectors are color coded per industry-standard requirements for easy identification. Install with the OptoSpan FieldConnect Installation Kit which includes lint free wipes, a standard cleaver, buffer remover, launch cables, Kevlar scissors, and more for quick and easy connector setup. Pair with OptoSpan Fiber Optic Cables available in a wide selection of lengths and styles. Other OptoSpan Field Installable Connectors include SC Field-Installable Connectors, and FieldConnect Installation Kit.
Click Here for additional information on OptoSpan Field Installable Connectors.
For all other OptoSpan Specialty Fiber Products, please see Specialty Fiber Optic Cables, MTP Elite Cables, Fiber Optic Cable Testers, Fiber Optic Cleaners, Fiber Optic Adapters, and Fiber Optic Attenuators.
Available Configurations:
- Precision Mechanical Splicing (index matching gel) insures low loss
- Pre-stubbed, factory-polished ferrule
- No epoxy required
- Finished Connector meets UL94-V0 Flammability Rating
- TIA/EIA 568-C.3 Compliant
Applications:
- Patch Panels/Optical Transport
- DWDM Connections
- Telecom Networks
- Equipment Test & Measurements
- Repair & Replacements
- FTTx Applications
FIELD INSTALLABLE CONNECTOR LC MULTIMODE (OM3/OM4)
OptoSpan FieldConnect LC 12-pack includes twelve pre-assembled and pre-polished Multimode (OM3/OM4) (Aqua) field-installable fiber optic connectors, omitting the need for epoxy curing or hand polishing at the field site. Including an internal mechanical grip holding the fiber in place, there is no epoxy required which allows efficient and simple installation in under two minutes.
FIELD INSTALLABLE CONNECTOR LC MULTIMODE (OM2)
OptoSpan FieldConnect LC 12-pack includes twelve pre-assembled and pre-polished Multimode (OM2) (Black) field-installable fiber optic connectors, omitting the need for epoxy curing or hand polishing at the field site. Including an internal mechanical grip holding the fiber in place, there is no epoxy required which allows efficient and simple installation in under two minutes.
FIELD INSTALLABLE CONNECTOR LC MULTIMODE (OM1)
OptoSpan FieldConnect LC 12-pack includes twelve pre-assembled and pre-polished Multimode (OM1) (Beige) field-installable fiber optic connectors, omitting the need for epoxy curing or hand polishing at the field site. Including an internal mechanical grip holding the fiber in place, there is no epoxy required which allows efficient and simple installation in under two minutes.
FIELD INSTALLABLE CONNECTOR LC SINGLE-MODE
OptoSpan FieldConnect LC 12-pack includes twelve pre-assembled and pre-polished Single-mode (Blue) field-installable fiber optic connectors, omitting the need for epoxy curing or hand polishing at the field site. Including an internal mechanical grip holding the fiber in place, there is no epoxy required which allows efficient and simple installation in under two minutes.
