6-144 Fiber Breakout Cables

OptoSpan fiber optic breakout cable assemblies simplify complex networking environments by reducing the need for additional components and eliminating clutter often created by various individual fiber optic patch cables. Available in Riser (OFNR) insulation and 6, 12, 24, 48, 72, or 144 fiber strands, these breakout style fiber cables provide a much more manageable and efficient working environment.

Featuring core/cladding diameter of 62.5/125μm, 50/125μm, and 9/125μm as well as support for OS2, OM1, OM2, OM3, and OM4 fiber optic specifications, these premium breakout cables deliver unparalleled performance while remaining incredibly versatile and reliable. Each breakout cable contains premium LC, LC/APC, SC, SC/APC, or ST connector variations on either end.  Other OptoSpan Breakout Fiber Cables include Plenum Breakout Fiber Cables, and Fiber Optic Pigtails.

Click Here for additional information on OptoSpan Breakout Style Fiber Fan-out Cables.

For all other OptoSpan Fiber Optic Cables, please see Fiber Patch Cables, Armored Fiber Optic Cables, MTP Cables, MPO Cables, Specialty Fiber Optic Cables, Bend Insensitive Fiber Cables, and Bulk/Bare Fiber Spools.

Available Configurations:

  • 6-144 Fiber Breakout Cables in Single-mode and Multimode
  • Standard Protective Jacket
  • Permutations of LC, SC, and ST port connections
  • 6, 12, 24, 48, 72, or 144 fiber count
  • 50/125μ, 62.5/125μ 9/125μ Core/Cladding Diameter
  • Riser (OFNR) Rated Insulation
  • UPC (standard)/APC (Angled) Polish

Applications:

  • Data Center Racks
  • Desktop/Network Connections
  • Indoor  Networking
6-144 Fiber OM4 50/125 Multimode Breakout Fiber Optic Cable

6-144 Fiber OM4 50/125 Multimode Breakout Fiber Optic Cable

OM4 breakout fiber cables allow for the greatest amount of transmission distance while retaining high speeds as introduced by OM3 fiber. Featuring a core/cladding diameter of 50/125μm, this line of fiber optic cables is laser optimized for 40G/100G networks while remaining backwards compatible with OM3 equipment.

6-144 Fiber OM3 50/125 Multimode Breakout Fiber Optic Cable

6-144 Fiber OM3 50/125 Multimode Breakout Fiber Optic Cable

OM3 breakout fiber cables feature data transfer speeds of up to 40G/100G using 850nm wavelengths, with distances of up to 100m. As the most cost effective choice in high speed data transfers, this series of fiber optic assemblies is the most common choice of current network administrators for its ability to deliver high performance and ease of future upgradability.

6-144 Fiber OM1 62.5/125 Multimode Breakout Fiber Optic Cable

6-144 Fiber OM2 62.5/125 Multimode Breakout Fiber Optic Cable

OM2 fiber breakout cables feature a core and cladding diameter of 50/125μm allowing for hassle-free network upgrades to higher fiber specifications. These breakout cables also improve on the OM1 fiber by increasing the transmission distances and reducing the maximum attenuation per kilometer.

6-144 Fiber OM1 62.5/125 Multimode Breakout Fiber Optic Cable

6-144 Fiber OM1 62.5/125 Multimode Breakout Fiber Optic Cable

OM1 fiber is currently the most economical multimode specification available capable of reaching 10G transmission speeds. Each assembly features a 62.5/125μm core/cladding, allowing for wavelengths of either 850nm or 1300nm reaching distances of 33m or up to 300m respectively.

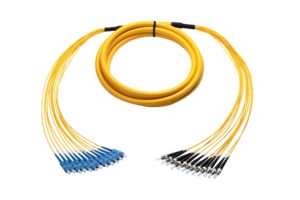

6-144 Fiber OS2 9/125 Single-Mode Breakout Fiber Optic Cable

6-144 Fiber OS2 9/125 Single-Mode Breakout Fiber Optic Cable

OS2 fiber allows for nearly unlimited bandwidth and transmission speeds of up to 100G. Featuring a core/cladding diameter of 9/125μm, this line of fiber optic cables maintains a unique blend of performance and function unobtainable by any other specification.
